| Thread ID: 91659 | 2008-07-14 10:52:00 | "Multimedia Audio Contoller" Driver? | justinsg (11165) | Press F1 |
| Post ID | Timestamp | Content | User | ||
| 688877 | 2008-07-14 10:52:00 | Hi there, I have recently been gifted a computer by a friend (who I won’t see again) and also a Windows XP Home SP1 CD. When I installed Windows from the CD and added SP2, the audio on the motherboard didn’t install. The computer has Speaker, Mic and Line Out ports on the back and extended speaker and Mic ports on the front of the case but there is no audio signal anywhere. This was expected because there was no driver installed for the motherboard’s audio controller, but when I downloaded a driver from the motherboard’s website (www.ecs.com.tw) it still didn’t give me anything. All other parts of the motherboard are working (COM, Printer, Mouse, Keyboard, USB, LAN, CPU etc) fine and their drivers were installed automatically by Windows. My graphics card is a separate PCI card which is working fine. Apart from buying a PCI or USB sound card, is there any way I can get this working? I don’t know what details people need but I got what I could from the “Windows Device Manager”: Multimedia Audio Controller (under ‘Other Devices’ with a yellow exclamation) Device Instance ID PCI\VEN_1106&DEV_3059&SUBSYS_810D1043&REV_60\3&61AAA01&0&8D Hardware IDs PCI\VEN_1106&DEV_3059&SUBSYS_810D1043&REV_60 PCI\VEN_1106&DEV_3059&SUBSYS_810D1043 PCI\VEN_1106&DEV_3059&CC_040100 PCI\VEN_1106&DEV_3059&CC_0401 Compatible IDs PCI\VEN_1106&DEV_3059&REV_60 PCI\VEN_1106&DEV_3059 PCI\VEN_1106&CC_040100 PCI\VEN_1106&CC_0401 PCI\VEN_1106 PCI\CC_040100 PCI\CC_0401 Enumerator PCI Devnode Flags DN_HAS_PROBLEM DN_DISABLEABLE DN_NT_ENUMERATOR DN_NT_DRIVER Ejection Relations PCI\VEN_1106&DEV_3227&SUBSYS_00000000&REV_00\3&61aaa01&0&88 Class Installer MmSys.Cpl,MediaClassInstaller Current Power State D3 Power Capabilities PDCAP_D0_SUPPORTED PDCAP_D1_SUPPORTED PDCAP_D2_SUPPORTED PDCAP_D3_SUPPORTED Power State Mappings S0 -> D0 S1 -> D1 S2 -> Unspecified S3 -> Unspecified S4 -> D3 S5 -> D3 I'll post some image links in a minute. Thanks in advance for your help, Justinsg |
justinsg (11165) | ||
| 688878 | 2008-07-14 11:02:00 | Install VIA Service Pack (4 in 1) as well. If you havent. I think these are the chipset / mobo drivers Also if you have some kind of voicemodem, this may take over as the default audio device. Look under sounds and audio devices / audio tab |
Speedy Gonzales (78) | ||

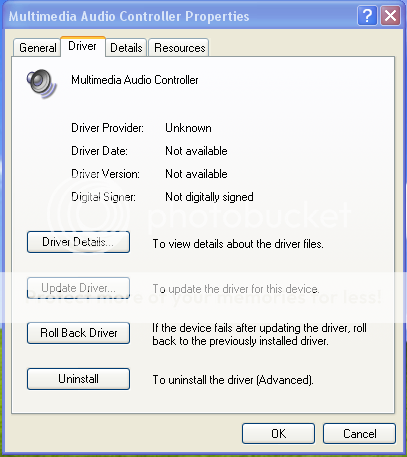

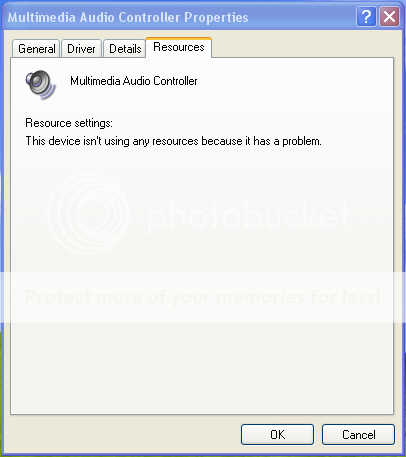

| 688879 | 2008-07-14 11:18:00 | Here are some images links of the tabs: Driver Tab (i343.photobucket.com) Resources Tab (i343.photobucket.com) General Tab (i343.photobucket.com)- May not work i'll fix if you really need it |
justinsg (11165) | ||
| 688880 | 2008-07-14 11:21:00 | OK I'll try that 4in1 SP tomorrow. and there is currently "No Audio Device" installed or working according to the 'sounds and audio' control panel menu Cheers for the help Justinsg |
justinsg (11165) | ||
| 688881 | 2008-07-14 11:27:00 | How did you install the audio drivers?? Did it have an exe file in the zipped file? | Speedy Gonzales (78) | ||
| 688882 | 2008-07-15 10:25:00 | How did you install the audio drivers?? Did it have an exe file in the zipped file? Have installed the 4 in 1 pack via a setup program. When i went to install the sound driver through the setup program in that, i was given the message VIA AC97 Chipset is not found on this system. When i pointed windows to the folder it found a driver (it said was untested for XP) which installed but doesn't work. Help? Justinsg |
justinsg (11165) | ||
| 688883 | 2008-07-15 21:55:00 | Is the onboard sound enabled in the BIOS? | autechre (266) | ||
| 688884 | 2008-07-15 22:04:00 | [B]Hi there, I have recently been gifted a computer by a friend (who I won’t see again) I downloaded a driver from the motherboard’s website ( . ecs . com . tw/ECSWebSite/Products/ProductsDetail . aspx?detailid=333&DetailName=Driver&MenuID=7&LanID=8" target="_blank">www . ecs . com . tw) it still didn’t give me anything . ECS . Some friend . Are you sure you have the correct model of motherboard? |
pctek (84) | ||
| 688885 | 2008-07-15 23:17:00 | Don't even bother with ECS drivers, they're just the standard VIA ones but out of date. Always get latest VIA drivers at www.viaarena.com Try these audio drivers: www.viaarena.com If you already did try those, then re-check your board model and revision because those drivers should work |
Agent_24 (57) | ||
| 688886 | 2008-07-16 07:42:00 | I have installed the drivers you provided links for and that didn't coax it into action. Also checked the BIOS and nothing is mentioned in there about a sound card but I double checked everything in there just to make sure. Also I will revise my study of my motherboard. I have no good idea of how to find out the model (last time I just googled the device ID and i was given that link) so can you give me some pointers on how to do this? Am coming near the conclusion that I need to buy a separate PCI sound card or USB. Where can I get one cheap? I still will appreciate :help: (help) though! Thanks Justinsg |
justinsg (11165) | ||
